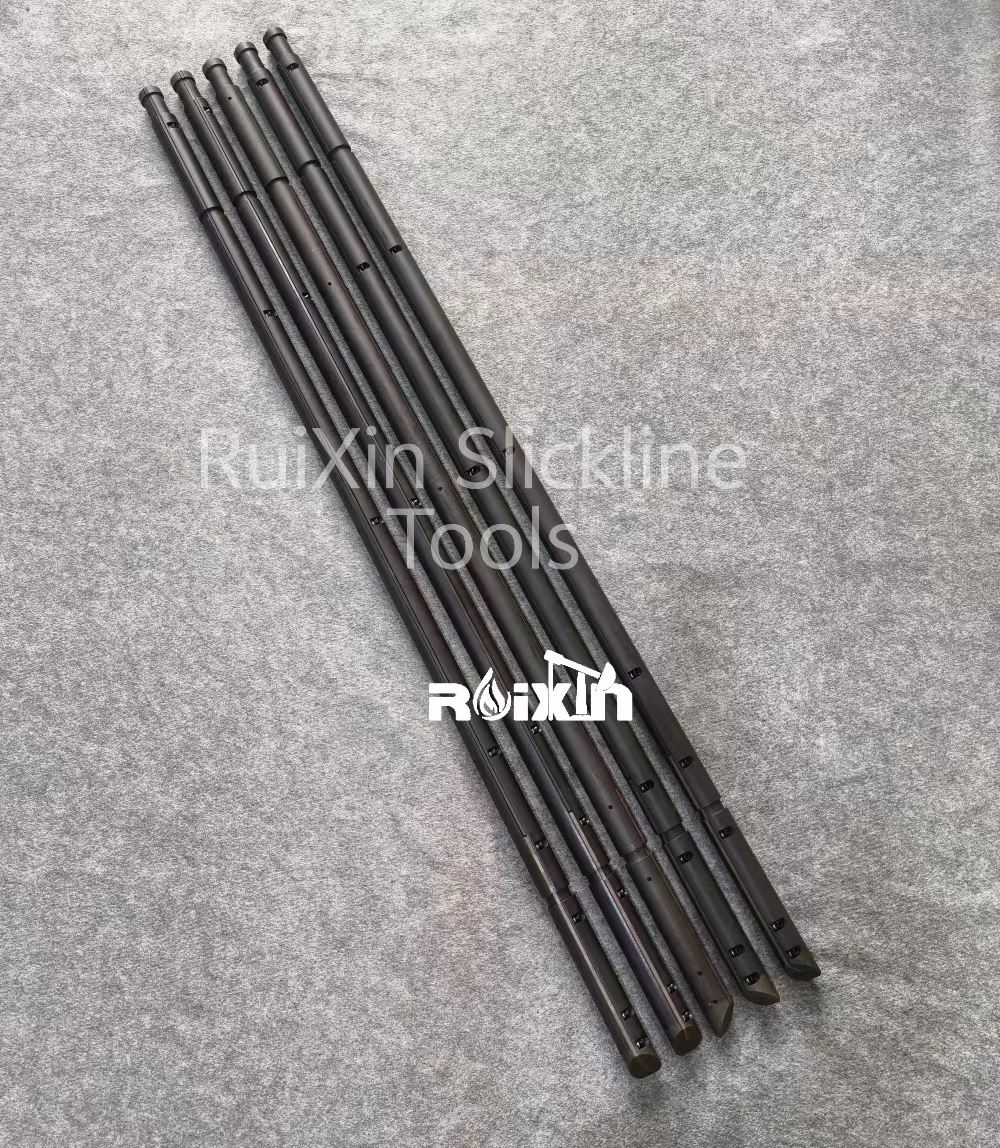

Cutter Bar Type Go Devil Wireline Fishing Tool 1.5inch
I Overview
The Cutter Bar Type Go Devil is used to cut the stuck tool string wire. The diagonal bottom wire cutter is composed of a solid bar with a groove and a guide surface. It goes down the well in a conventional manner, and if there are no foreign objects on the cap, the bevel of the cutter will cut the wire directly on the cap. When the wire tool is severely buried by sand, debris, or wire, or is not cut at one time. You can hit it again with a flat bottom wire cutter. The wire cutter is provided with a positioning slot for a slip centralizer, which can be used in large diameter tubing.
II Structure characteristics and use
The Cutter Bar Type Go Devil is composed of a slotted diagonal bottom solid rod and a baffle plate, and the baffle plate is connected with the slotted solid rod by screws. When in use, the baffle plate is removed, the steel wire is inserted into the slot, and then the baffle plate is installed. Wire cutters run the wire down the well and cut the wire at the cap. Then the wire cutter and tool string are fished out with the casting and fishing device.

III commonly used technical parameters

Any size can be customized according to customer requirements
IIII attention
1 When using the diagonal bottom wire cutter, be sure that there are no foreign objects above the rope cap. Otherwise it can't cut the wire.
2 Timely and careful maintenance to extend the service life of the tool.

◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.

Welcome to contact us at any time.
