1.25inch～6.625inch Wireline Tubing Swage Slickline Tools
I.Overview
The Tubing Swage is a tool used to shape the tubing reducing area
to ensure the smooth passage of downhole equipment. Sometimes it
can also be used to open the orange peel type dead plug at the end
of the tubing.
II.Structural features

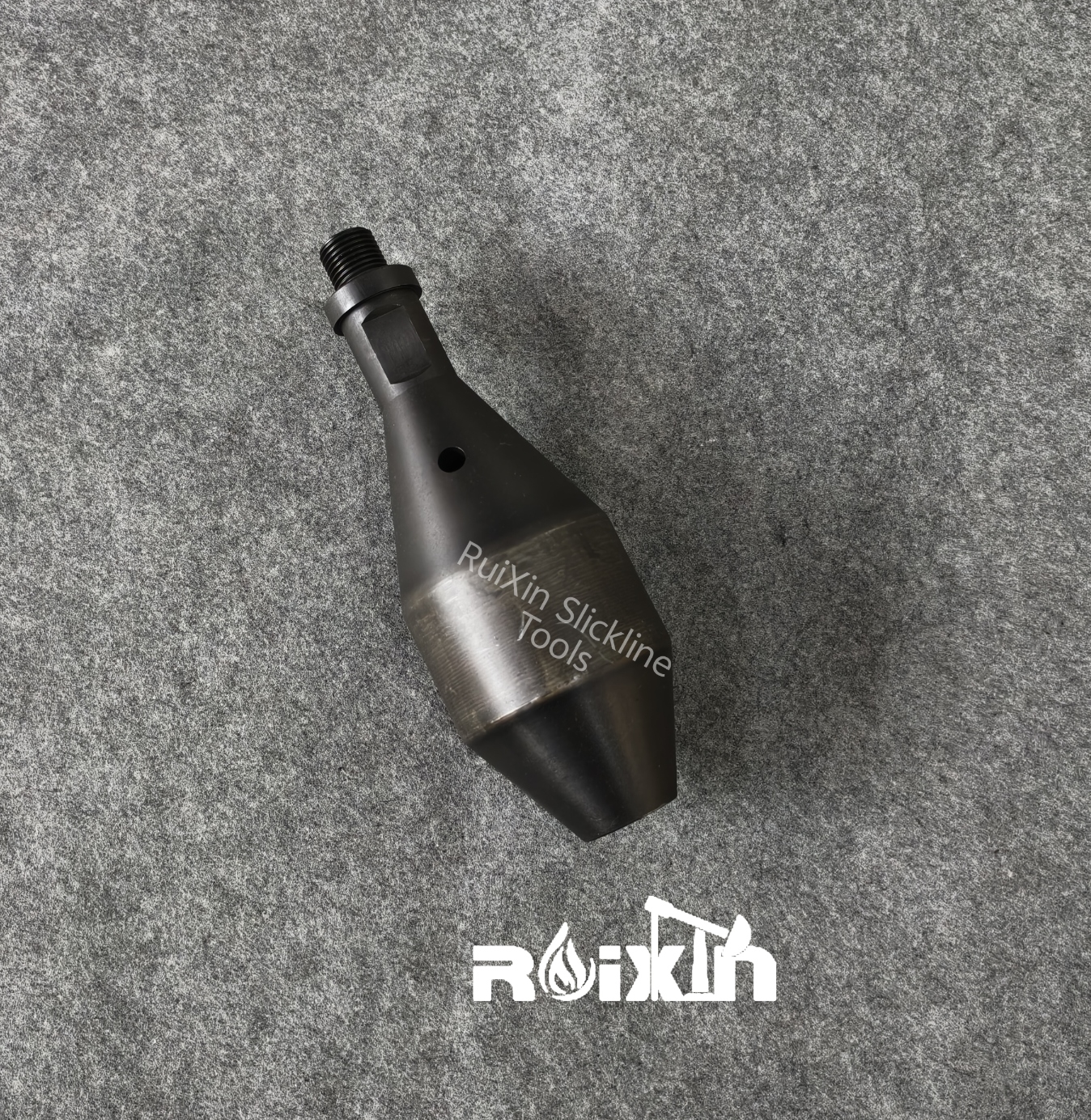

The Tubing Swage is such a structure, the upper part of the
external thread (or quick joint male end) and fishing neck; The
inner diameter of the waist and the deformed tubing is roughly the
same, so the middle is designed with ventilation or drainage holes,
and the two ends of the waist are gradually thinner; The bottom can
also be threaded to connect other tools. Tubing shaper is made of
whole body alloy steel, and the parts used for shaping are quenched
and tempered with a hardness of 43~45HRC.
III.Usage Connect
The tubing Swage to the lower part of the jar. When the tubing shaper goes down to
the tubing reducing area and can no longer go down, the jar is used
to jar downward to expand the reducing area, so as to ensure the
smooth passage of the downhole device.
IIII.Any size can be customized according to customer requirements.
IIIII.Technical parameters
| Size | Fishing neck | Connection |
| 1.25inch | 1.187inch | 15/16-10UN |
| 1.875inch | 1.375inch | 15/16-10UN |
| 2.8inch | 1.75inch | 1-1/16-10UN |
| 3.5inch | 1.75inch | 1-1/16-10UN |
| 4inch | 2.313inch | 1-1/16-10UN |
| 5inch | 2.313inch | 1-1/16-10UN |
| 6.625inch | 3.125inch | 1-9/16-10UN |
◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It
is an IS0: 9001-2015 and API Q1 system certified technology
research and development organization specializing in the design
and manufacture of steel wire, cable and coiled tubing tools. With
strong new product research and development capabilities, it has
obtained 12 national utility model patent certificates and 1
invention patent certificate. Undertook two prefecture-level and
provincial-level scientific research projects. Our products include
wireline wireline wellhead blowout prevention equipment, wireline
downhole tools and coiled tubing downhole tools. At present, we
have provided professional equipment and technical support to more
than 50 oilfield service companies in various regions at home and
abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all
manufacturing are strictly in accordance with API system, including
quality control management, environmental management and
occupational health and safety management. For each wire working
tool and each part, we have achieved traceability from raw
materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and
technical personnel communicated well with front-line engineers and
technical experts on the job site, and solved technical problems
such as material selection, sealing structure optimization, and
accident handling in complex environments. And carried out many
technical exchanges and friendly cooperation. We have done a good
job of product after-sales service for customers, and we provide
customers with more satisfactory services. We would like to thank
more and more customers for their support and trust. In the future,
we will do better.
Welcome to contact us at any time.
