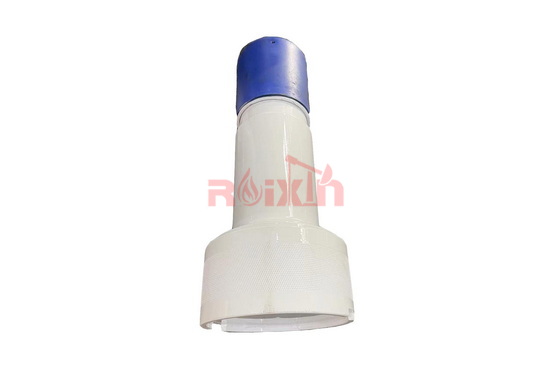

Wireline Wellhead Joint Wireline Pressure Control Equipment

I. Overview:
The wellhead joint is used to connect the blowout preventer with the wellhead, with the upper part connected with the blowout preventer and the lower part connected with the wellhead. The wellhead joint is sealed by threads. When in use, the wellhead connector can be directly tightened on the thread of the wellhead after winding the thread with tetrafluoroethylene tape or applying anti-sticking grease on the thread.
II.the pressure test:
Wellhead joints shall be tested for compressive strength at regular intervals, and the test pressure shall be 1.5 times of the working pressure.
1. Install the pressure test joint and connect the pressure test pipeline;
2. Start the pressure test pump for pressure test: press it to the test pressure, hold it for 15 minutes without leakage, and fill in the test record card.
III. Routine maintenance:
1. The pressure test shall be conducted regularly;
2. When temporarily not in use, it should be stored with silk protector.

◆About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

◆Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

◆Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
