Alloy Steel&Nickel Alloy Wireline Gauge Cutter 1.25inch～6inch
Slickline Tools
product presentation

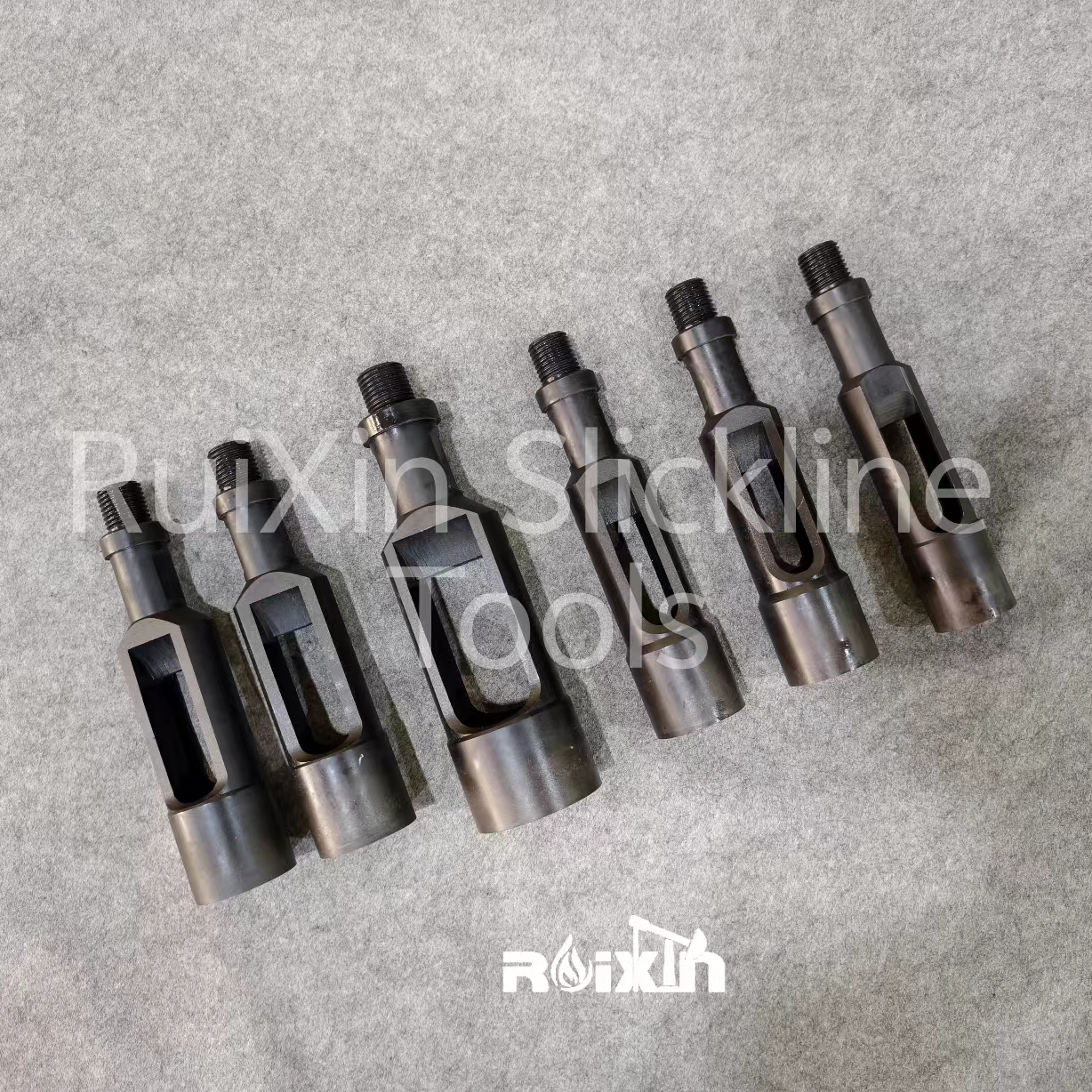

Wireline Gauge Cutter also known as the diameter gauge, is an
important auxiliary tool in wire operation. Run the Gauge cutter
before running the downhole tool to determine whether the downhole
device can pass through the tubing and to determine the location of
the joint located in the tubing. At the same time, the wax, rust
and rock debris in the tubing can be scraped off together.
The outside diameter of the Gauge Cutter can be processed according
to customer needs. Under normal circumstances, the outside diameter
of the Gauge cutter is slightly larger than the maximum outside
diameter of the drilling tool. The connection thread and fish neck
can be selected according to the standard specifications.
The Wireline Gauge Cutter of the tubing scraper is the connection
thread and fish neck, and the lower part is the part of the tubing
scraper to scrape off wax, rust and rock debris. After quenching
treatment, the surface hardness of this area is high, and the wax,
rust and cuttings can be smoothly scraped off. There is a large
chip hole in the middle of the Gauge Cutter, which can smoothly
discharge the cuttings, so as not to cause the accumulation of
cuttings, so that the tool can not work normally. When in use, the
scraper is connected to the front end of the tool string, and when
it is lowered, once it encounters obstacles, the jar will jar
downward and scrape away the obstacles.
Common technical parameters
| Size | Fishing neck | Connection |
| 1.25″ | 1.187″ | 15/16″-10UN |
| 2.25″ | 1.375″ | 15/16″-10UN |
| 3″ | 1.75″ | 1-1/16″-10UN |
| 3.75″ | 1.75″ | 1-1/16″-10UN |
| 4.3″ | 2.313″ | 1-1/16″-10UN |
| 5.59″ | 2.313″ | 1-1/16″-10UN |
| 5.9″ | 3.125″ | 1-9/16″-10UN |
| 6.1″ | 3.125″ | 1-9/16″-10UN |
Any size can be customized according to customer requirements.
Quality policy
Leading technology creates a well-known brand-RuiXin
Continuous innovation to ensure customer satisfaction
◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It
is an IS0: 9001-2015 and API Q1 system certified technology
research and development organization specializing in the design
and manufacture of steel wire, cable and coiled tubing tools. With
strong new product research and development capabilities, it has
obtained 12 national utility model patent certificates and 1
invention patent certificate. Undertook two prefecture-level and
provincial-level scientific research projects. Our products include
wireline wireline wellhead blowout prevention equipment, wireline
downhole tools and coiled tubing downhole tools. At present, we
have provided professional equipment and technical support to more
than 50 oilfield service companies in various regions at home and
abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all
manufacturing are strictly in accordance with API system, including
quality control management, environmental management and
occupational health and safety management. For each wire working
tool and each part, we have achieved traceability from raw
materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and
technical personnel communicated well with front-line engineers and
technical experts on the job site, and solved technical problems
such as material selection, sealing structure optimization, and
accident handling in complex environments. And carried out many
technical exchanges and friendly cooperation. We have done a good
job of product after-sales service for customers, and we provide
customers with more satisfactory services. We would like to thank
more and more customers for their support and trust. In the future,
we will do better.
Welcome to contact us at any time.
