Brand Name : | Ruixin |
Model Number : | 2.875inch~3.5inch |
Certification : | API Q1 |
Payment Terms : | T/T |
Supply Ability : | 1 set 3 weeks |
Delivery Time : | 3-4 weeks |

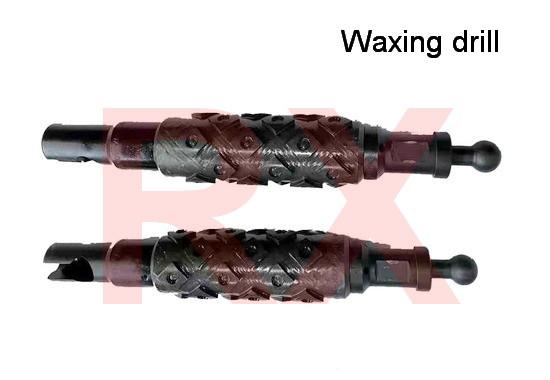

3.5 Inch Waxing Drill Gauge Cutter Wireline
I. Overview:
The Waxing drill is a common tool for dewaxing using wire work
tools.
II. Technical parameters of common specifications:
Tubing specification | Actual outer diameter | Fishing neck | Connection |
2-7/8″ | 52mm | 1.375″ | 15/16″-10UN |
54mm | 1.375″ | 15/16″-10UN | |
56mm | 1.375″ | 15/16″-10UN | |
3-1/2″ | 63.5mm | 1.375″ | 15/16″-10UN |
68mm | 1.375″ | 15/16″-10UN | |
72mm | 1.375″ | 15/16″-10UN |
III. matters needing attention:
1, in order to ensure free rotation of the tool, it must be
connected to a rotary joint in the tool string below the basic cord
cap to prevent distortion of the wire.
2, in addition to high wax wax portion of the drill bit the
hardness, safekeeping after use, to avoid collision with a hard
object, the use of impact.
3. After using the connecting thread, apply grease and place it
with a protective wire.
Welcome to contact us at any time.
![]() |
