Alloy Steel Wireline Roller Stem Tool String 1.875 Inch

Ruixin Energy Equipmnet
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Alloy Steel Wireline Roller Stem Tool String 1.875 Inch from wholesalers

    Buy cheap Alloy Steel Wireline Roller Stem Tool String 1.875 Inch from wholesalers
    • Buy cheap Alloy Steel Wireline Roller Stem Tool String 1.875 Inch from wholesalers

    Alloy Steel Wireline Roller Stem Tool String 1.875 Inch

    Ask Lasest Price
    Brand Name : Ruixin
    Model Number : 1.5inch 1.875inch 2inch 2.125inch
    Certification : API Q1
    Payment Terms : T/T, Western Union
    Supply Ability : 1 set 3 weeks
    Delivery Time : 3-4 weeks
    • Product Details
    • Company Profile

    Alloy Steel Wireline Roller Stem Tool String 1.875 Inch

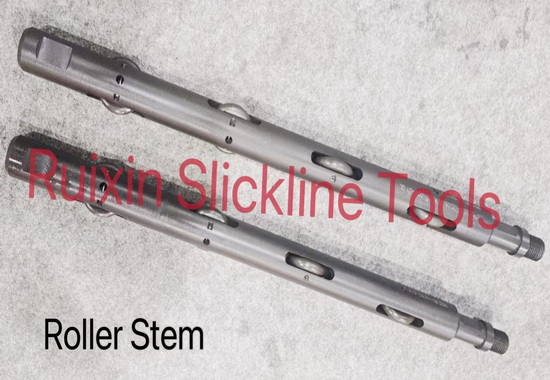

    1.875 inch Wireline Roller Stem Wireline Tool String

    I.Introduction

    A wireline roller stem is designed to replace conventional stem for operation in deviated well bores. The rollers on the stem run along the underside wall of the tubing. The use of rollers greatly reduces the friction that conventional stem would encounter.

    II.General Technical Parameters

    Size

    (Body)

    Fishing neckConnectionLengthPN.
    1.25"1.187"15/16UN2ftW03-05.05.00
    1.25"1.187"15/16UN3ftW03-05.06.00
    1.25"1.187"15/16UN5ftW03-05.07.00
    1.5"1.375"15/16UN2ftW03-05.08.00
    1.5"1.375"15/16UN3ftW03-05.04.00
    1.5"1.375"15/16UN5ftW03-05.09.00
    1.75"1.375"15/16UN2ftW03-05.10.00
    1.75"1.375"15/16UN3ftW03-05.11.00
    1.75"1.375"15/16UN5ftW03-05.12.00
    1.875"1.75"1-1/16UN2ftW03-05.13.00
    1.875"1.75"1-1/16UN3ftW03-05.03.00
    1.875"1.75"1-1/16UN5ftW03-05.14.00
    2.125"1.75"1-1/16UN2ftW03-05.15.00
    2.125"1.75"1-1/16UN3ftW03-05.16.00
    2.125"1.75"1-1/16UN5ftW03-05.02.00
    2.5"2.313"1-9/16UN2ftW03-05.17.00
    2.5"2.313"1-9/16UN3ftW03-05.18.00
    2.5"2.313"1-9/16UN5ftW03-05.19.00

    Note. More customized parts are available upon request.

    III.Structure characteristics and application

    The wireline roller stem is modified based on conventional stem, with milled slots to accommodate simple roller wheels. The wheels run on high tensile steel axle bolts, which are locked in position by roller pins.

    Welcome to contact us at any time.
