Alloy Steel Slickline Wireline Chemical Injection Sub Liquid Chamber

Ask Lasest Price
Brand Name :	Ruixin
Model Number :	2inch ID 3inch ID 4.06inch ID 5-1/8inch ID
Certification :	API
Price :	USD 1000~
Payment Terms :	T/T
Supply Ability :	1 set 4 weeks
Delivery Time :	4-5 weeks

Add to Cart

Product Details
Company Profile

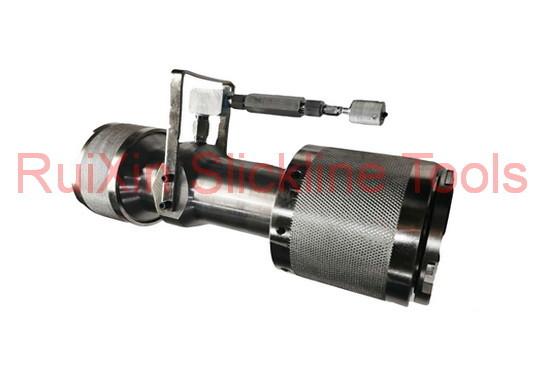

Alloy Steel Slickline Wireline Chemical Injection Sub Liquid Chamber

Alloy Steel Slickline Wireline Chemical Injection Sub Liquid Chamber

Ⅰ. Introduction

Chemical injection sub is designed to apply deicer or corrosion inhibitor to cable during workover operation.The chemical injection sub is installed under the grease injection or stuffing box, which wraps the wire with replaceable felt filler and prevents chemicals from passing through the hole.

Ⅱ. Common technical parameters:

Wire	Connection	WP(Psi)
1/8"	5-4ACME	5000
1/8"	5-3/4-4ACME	10000
1/8"	6-5/16-4ACME	10000
1/8"	6-1/2-4ACME	10000
7/32"	4-3/4-4ACME	5000
7/32"	4-3/4-4ACME	10000
7/32"	2-10ACME	10000
7/32"	6-1/4-4ACME	15000

III. Precautions:

1. Apply grease to threads and seals during assembly;

2. Avoid bumping during handling;

3. After the tool is disassembled, check the damage of each part, and replace the damaged parts, among which the felt washer should be replaced regularly;

4. After use, clean the tools, bring thread protectors and protect the threads.
