    API Sealing GIH Grease Injection Head For Braided Cable Wireline

    Ask Lasest Price
    Brand Name : Ruixin
    Model Number : 3.5 inch seal 3.75 inch seal 4 inch seal 4.75 inch seal
    Certification : API
    • Product Details
    • Company Profile

    API Sealing GIH Grease Injection Head For Braided Cable Wireline

    API Sealing GIH Grease Injection Head For Braided Cable Wireline


    Grease Injection System Wireline Pressure Control

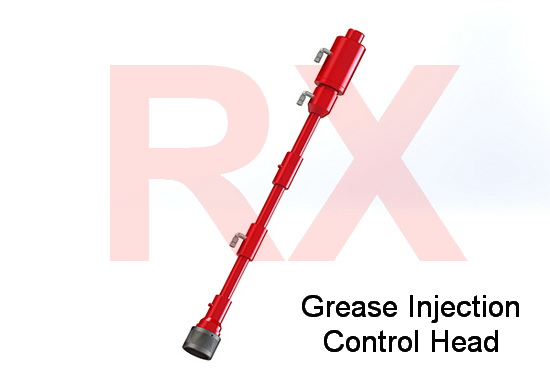

    Grease Injection Head (GIH) is a sealing device designed for use on braided cable wireline operation. Positioned on top of the Lubricators, GIH effectively contains wellpressure by pumping grease into the flow tube, forming a liquid sealing that contains the well fluids and at the same time provides lubrication to the braided cable while running into and out of the well. The grease injection outlet port provides an exit for excessive or dirty grease, allowing new grease to be pumped in through the inlet port.

    Thread

    Seal Diameter

    WP(psi)

    Flow Tubes

    Wire Szie

    Service


    4-3/4"-4ACME

    3.750"

    5000

    3/4/5


    STD


    5"-4ACME

    3.500"

    5000

    3/4/5


    STD


    5-3/4"-4ACME

    4.000"

    10000

    3/4/5


    H2S


    6-1/2“-4ACME

    4.750"

    5000

    3/4/5


    STD


    8-3/8"-4ACME

    5.250"

    10000

    3/4/5


    H2S



    Welcome to contact us at any time.
