Model | Work Pressure | Bore | Wireline / Slickline OD. | Control Method | Remarks |
FZ6.3-35 | 5000PSI | 63.5mm | 0.125" | Manual/ Hydraulic | Single Ram |
2FZ6.3-35 | 5000PSI | 63.5mm | 7/32" | Hydraulic | Double Ram |
FZ7.6-35 | 5000PSI | 76.2mm | 0.125" | Manual/ Hydraulic | Single Ram |
2FZ7.6-35 | 5000PSI | 76.2mm | 7/32" | Hydraulic | Double Ram |
FZ10.2-35 | 5000PSI | 102mm | 0.125" | Manual/ Hydraulic | Single Ram |
2FZ10.2-35 | 5000PSI | 102mm | 7/32" | Hydraulic | Double Ram |
FZ6.3-70 | 10000PSI | 63.5mm | 0.125" | Hydraulic | Single Ram |
2FZ6.3-70 | 10000PSI | 63.5mm | 7/32" | Hydraulic | Double Ram |
FZ7.6-70 | 10000PSI | 76.2mm | 0.125" | Hydraulic | Single Ram |
2FZ7.6-70 | 10000PSI | 76.2mm | 7/32" | Hydraulic | Double Ram |
FZ10.2-70 | 10000PSI | 102mm | 0.125" | Hydraulic | Single Ram |
2FZ10.2-70 | 10000PSI | 102mm | 7/32" | Hydraulic | Double Ram |
FZ6.3-105 | 15000PSI | 63.5mm | 0.125" | Hydraulic | Single Ram |
2FZ6.3-105 | 15000PSI | 63.5mm | 7/32" | Hydraulic | Double Ram |
FZ7.6-105 | 15000PSI | 76.2mm | 0.125" | Hydraulic | Single Ram |
2FZ7.6-105 | 15000PSI | 76.2mm | 7/32" | Hydraulic | Double Ram |
FZ10.2-105 | 15000PSI | 102mm | 0.125" | Hydraulic | Single Ram |
2FZ10.2-105 | 15000PSI | 102mm | 7/32" | Hydraulic | Double Ram |
III. Structure Characteristics

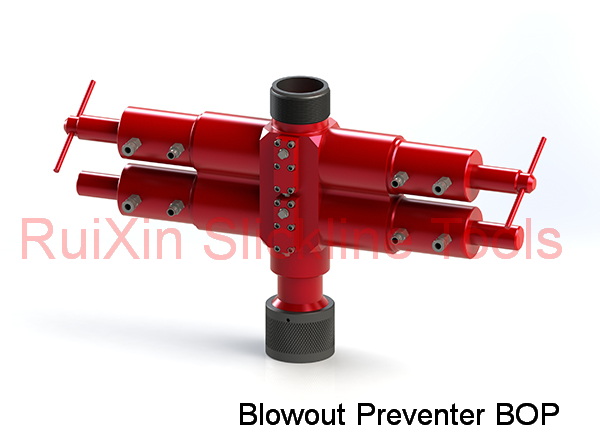

The BOP consists of body, ram assembly, equalizing valve, end cap,
stem, handle, O ring, etc.
IV. Maintenance
1. Disassemble BOP after operation and clean the parts. Check the
sealing-face or seal parts carefully.
Replace the worn parts in time.
2. After each disassembly, it is a must to conduct the seal test.
3. Strength test must be conducted on time.
Welcome to contact us at any time.
