    Single Manual Wireline Valve Wireline Pressure Control

    Ask Lasest Price
    Brand Name : Ruixin
    Model Number : 2inch ID 3inch ID 4.06inch ID 5-1/8inch ID
    Certification : API
    Price :
    Payment Terms : T/T
    Supply Ability : 1 set 4 weeks
    Delivery Time : 4-5 weeks
    • Product Details
    • Company Profile

    Single Manual Wireline Valve Wireline Pressure Control

    Single Manual Wireline Valve Wireline Pressure Control

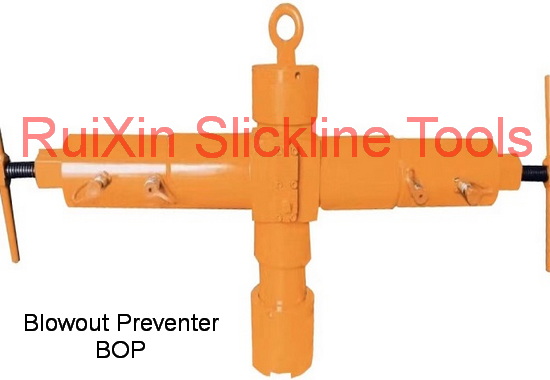

    Wireline Valve, also known as Blow Out Preventer (BOP), is used as a safet quipment commonly fund located between Lubricator and Wellhead/Christmas Tree. The design incorporates Ram bodies with inner seals that allow oressure to be contained within the well once the bodies are closed. This allow the pressure above o be bled off while the wire or cable is still intact thereby enable repairing and other works to be carried out on equipment above. The design also features equalising Valves that are fitted to the main body to allow equalisation of lubricator and well pressure when the operation is to be resumed

    Single Integral Manual Wireline Valve incorporate an integral top quick union connection to the main body. The manual operation features a pair of Ram assemblies and stem connected handle that can be manipulated by manuall rotating the handles to pen or close the rams. This design is only suitable fo slickline operation

    OTIS Quick Union

    BoreWork PressureServiceConnectionSeal Dia.
    2.5"5K 10KStd H2S5"-4ACME3.5"
    3"5KH2S5"-4ACME3.5"
    3"10KStd5"-4ACME3.5"
    3"10KStd H2S5-3/4"-4ACME4"
    2.5"15KH2S5-3/4"-4ACME4"
    4"5K 10KStd6-1/2"-4ACME4.75"
    3"15KStd H2S7-1/2"-4ACME5.5"
    5"5KStd H2S8-1/4"-4ACME6.188"
    4"10KStd H2S8-3/8"-4ACME5.25"
    5"5K 10KStd H2S9"-4ACME6.75"
    4"15KStd H2S9-1/2"-4ACME6.25"
    6.38"10KStd H2S11-1/2"-4ACME8.25"

    Welcome to contact us at any time.

    About Baoji RuiXin Slickline Tools

    Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

    Strict quality control system

    Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

    Hard work, after-sales service

    On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
