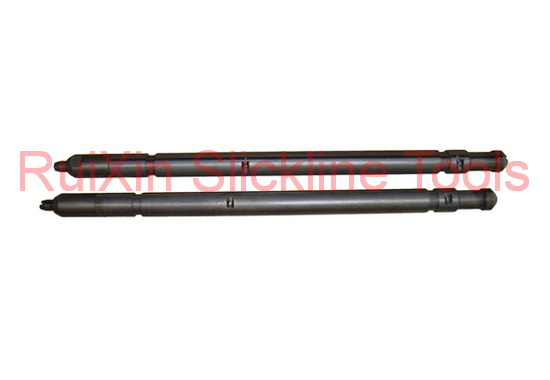

Wireline Snipper Wireline Fishing Tool For Downhole Tools
Wireline Fishing Tool Wireline Snipper
ⅠIntroduction
A Wireline Snipper is used to cut 0.092",0.108",0.125",0.187", 3/16",0.218"and 7/32"wirelines at a rope socket when the downhole tools have become stuck and cannot be retrieved.
II. General Technical Parameters
Size | Fishing neck | Wire Size |
1.5" | 1.375" | 0.125"/ 0.187" |
1.75" | 1.375" | 0.125"/ 0.187" |
1.875" | 1.375" | 0.125"/ 0.187" |
2.0" | 1.75" | 0.125"/ 0.218" |
2.5" | 1.75" | 0.125"/ 0.218" |
Note. More customized parts are available upon request.
III. Structure characteristics
The upper end of the Snipper consisits of a fishing neck whilst the of the lower end the Snipper houses the cutting and crimping assembly.There is a slot along the length of the body to allow it to be placed on the wireline prior to dropping into the well.
