Slickline Wireline JU Type Pulling Tool With Outer Fishing Necks

Ask Lasest Price
Brand Name :	Ruixin
Model Number :	1.5inch 1.875inch 2inch 2.125inch
Certification :	API
Payment Terms :	T/T
Delivery Time :	2-4weeks

Add to Cart

Product Details
Company Profile

Slickline Wireline JU Type Pulling Tool With Outer Fishing Necks

slickline Wireline JU Type Pulling Tool With Outer Fishing Necks

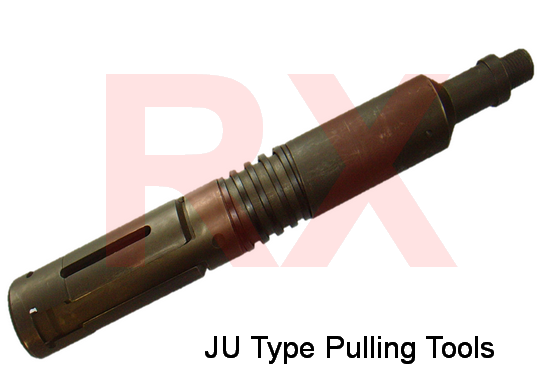

JU Type Pulling Tools Wireline Pulling Tool

I. Introduction:

A JU type pulling tool is used to fish the tools or instruments with outer fishing necks (such as balance bar, stopper and restrictor), which can move upward to slip out of hand and is divided into three types: JUC, JUS and JUL.

II. General Technical Parameters:

Size	Actual OD	Fishing neck	Connection	Grasping diameter	Grasping distance			PN.
Size	Actual OD	Fishing neck	Connection	Grasping diameter	JUC	JUS	JDL	PN.
1-1/4＂	1.291＂	1.187＂	15/16UN	0.875＂	1.937＂	2.687＂		W31-04.**.00
1-3/8＂	1.375＂	1.187＂	15/16UN	1.187＂	1.875＂			W31-04.**.00
1-1/2＂	1.422＂	1.187＂	15/16UN	1.187＂	1.093＂	1.844＂		W31-04.**.00
1-5/8＂	1.625＂	1.187＂	15/16UN	1.187＂	1.093＂			W31-04.**.00
2＂	1.86＂	1.375＂	15/16UN	1.375＂	1.437＂	2.125＂	4.13＂	W31-04.**.00
2-1/2＂	2.25＂	1.375＂	15/16UN	1.75＂	1.313＂	2.188＂	4.13＂	W31-04.**.00
3＂	2.796＂	1.75＂	15/16UN	2.313＂	1.437＂	2.125＂	4.13＂	W31-04.**.00
4＂	3.75＂	2.313＂	1-1/16UN	3.125＂	2.313＂	3.373＂	4.13＂	W31-04.**.00

Note. Pay attention to the model of grasping distance when ordering goods. More customized parts are available upon request.

III. Structural features

JU pulling tool is composed of upper contact, main spring, secondary spring, mandrel, sliding block, outer cylinder, fishing claw, shear pin, etc.

Welcome to contact us at any time.
