    BLQJ Nickel Alloy Wireline Swivel Joint Wireline Tool String 2.5 Inch

    Ask Lasest Price
    Brand Name : Ruixin
    Model Number : 1.25inch ,1.5inch 2.25inch, 2.5inch.
    Certification : API Q1
    Payment Terms : T/T
    Supply Ability : 1 set 2 weeks
    Delivery Time : 2-4 weeks
    • Product Details
    • Company Profile

    BLQJ Nickel Alloy Wireline Swivel Joint Wireline Tool String 2.5 Inch

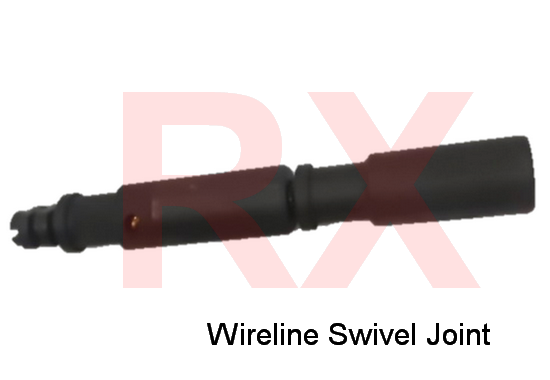

    Wireline Swivel Joint Wireline Tool String

    I.Introduction

    The Swivel Joint is a wireline accessory used minimise the effect of line twist caused by

    subsurface devices being run.

    II.Product description


    Actual O.D.Fishneck O.D.Connection
    1.25"1.187"15/16UN
    1.5"1.375"15/16UN
    1.875"1.75"1-1/16UN
    2.125"1.75"1-1/16UN
    2.25"1.75"1-1/16UN
    2.5"2.313"1-9/16UN

    Tools can be manufactured to any size required.


    III.Structure characteristics

    Wireline Swivel Joint consists of upper sub, lower sub, mandrel, bearing sleeve, thrust ball

    bearing, etc.. The mandrel with thrust ball bearing fixed is then installed to the bearing sleeve.

    The upper sub is connected to the bearing sleeve and the lower sub is connected to the mandrel

    with screws. And fix the swivel joint between the rope socket and stem. The thrust ball bearing is

    with tiny friction. When the stem, etc. drives the mandrel to rotate, the upper bearing sleeve and

    the upper sub do not move. Thus, Wireline Swivel Joint connected to the rope socket will be

    prevented from twisting off.

    Welcome to contact us at any time.
