    Cast Aluminum Hay Pulley Wireline Pressure for Control Direction

    Ask Lasest Price
    Brand Name : Ruixin
    Model Number : 12 inch 14inch 16inch 20inch
    Certification : API
    Payment Terms : T/T
    Supply Ability : 1 set 3 weels
    Delivery Time : 2-4 weeks
    • Product Details
    • Company Profile

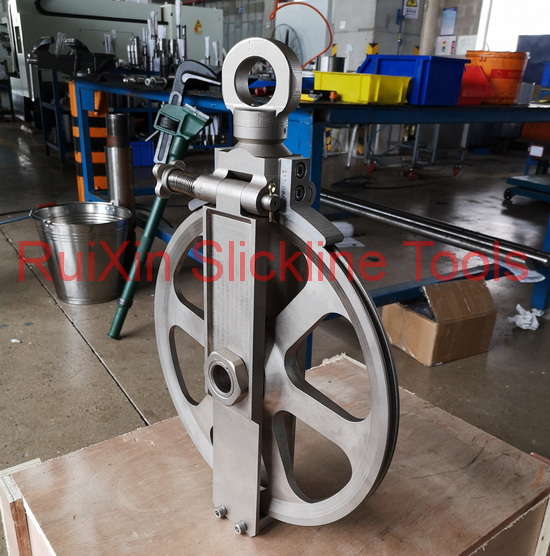

    Cast Aluminum Hay Pulley Wireline Pressure for Control Direction

    Cast Aluminum Hay Pulley Wireline Pressure for Control Direction


    Introduction

    The Hay Pulley is the top and bottom sheave used in wireline pressure control operation. The Hay Pulley is applied for controlling and manipulating the direction of the wireline from a horizontal positon to a vertical position in route to the stuffing box from the wireline unit. The slick line pulldy is generally positioned at the wellhead on the lubricator to reduce side pull force and to avoid lateral loading of the lubricator during heavy jarring operations.

    In the hay pulley, top Sheave is a rope guiding device has adjustable center distance,and the bottome sheave is a rope guding device which can universal rotation.The slickline pass through the top and bottom sheave connect to the well test winch drum,which can control the slickline tools pulling into the well

    SizeWire sieSafe working load
    12"
    TBA.
    14"7/32" 5/16"
    16"7/32" 5/16" 15/32"20KN
    Quality Cast Aluminum Hay Pulley Wireline Pressure for Control Direction for sale
