Alloy Steel Tubing Broach Gauge Cutter Wireline For Remove Scale

Ask Lasest Price
Brand Name :	Ruixin
Model Number :	1.5inch~4inch
Certification :	API
Payment Terms :	T/T
Supply Ability :	1 set 3 weeks
Delivery Time :	3-5 weeks

Add to Cart

Product Details
Company Profile

Alloy Steel Tubing Broach Gauge Cutter Wireline For Remove Scale

Alloy Steel Tubing Broach Gauge Cutter Wireline For Remove Scale

I. Overview:
The Tubing Broach is a tool used to hang any natural obstruction cone in the well or to reshape the tubing with a small amount of deformation. The whole cone can hang up the obstruction of about 4mm.
II. Product Specifications:
Tubing Broach are available in various specifications according to customer requirements.

Size	Fishing neck	Connection
1.5＂	1.375＂	15/16"-10UN
2＂	1.375＂	15/16"-10UN
2.5＂	1.75＂	1-1/16"-10UN
3＂	1.75＂	1-1/16"-10UN
4＂	2.313＂	1-1/16"-10UN

III. Structural characteristics:

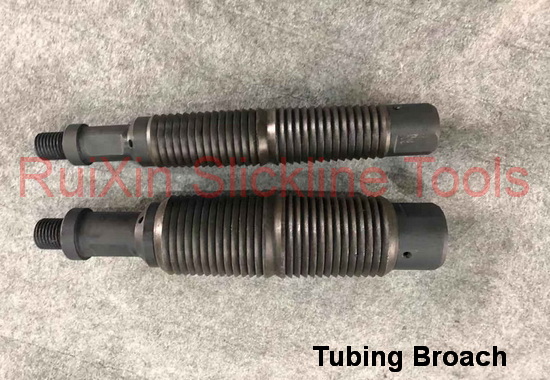

The Tubing Broach is connected by the main body, the scraper and the pressure cap. After the pressure cap is connected with the main body, it is supported by nails (see the attached picture for the specific structure).
There is a vent hole on the body, which is used for venting or draining liquid during use, so as to prevent any end from being held back, causing difficulty in use or accidents.
The scraper is a shuttle type with small ends and a large middle, which is used to scrape obstacles up and down the shock cone, and can scrape downward or upward. Moreover, the blade part of the scraper is all quenched and tempered, and the hardness is as high as 47-52HRC.
IV, matters needing attention:
The Tubing Broach can only be used to scrape a certain amount of obstacles. When the obstacle of the tubing is too thick or the tubing is seriously deformed, other tools should be considered.

Tools Can Be Manufactured To Any Size Required. Welcome to contact us at any time.

◆About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

◆Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

◆Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
