2 Inch Wireline Brush Gauge Cutter Slickline Tools
I.Introduction

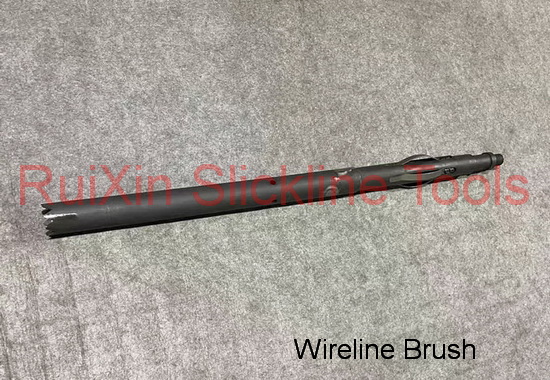

The Wireline Brush is used to brush out scale, waxes or packing
debris from the tubing string and tubing nipples prior to running the subsurface devices.
II.Technical Parameters
| Actual O.D. | Fishneck O.D | Connections | Length |
| 1.5" | 1.375" | 15/16UN | 24"/36" |
| 1.875" | 1.375" | 15/16UN | 24"/36" |
| 2.25" | 1.75" | 1-1/16UN | 24"/36" |
| 2.50" | 1.75" | 1-1/16UN | 24"/36" |
| 4" | 2.313" | 1-1/16UN | 24"/36" |
Tools can be manufactured to any size required.
III.Structural features
Some holes are drilled on the weight bar of wireline brush evenly
and rotationally, and then the wireline is fixed with headless screws. The wireline stretching out of the
body is incompact more convenient for brushing away sundries.The wireline brush is connected with the
bottom of basic tool string for use.
IV. Daily maintenance
1. When the tool is not used temporarily, paint the connecting
thread with lubricating grease and keep it with thread protector.
2. When the open wireline head is bended and displaced, adjust it
in time for next use.
