Wellhead Flange Wireline Pressure Control Equipment Alloy Steel
Wireline Wellhead Flange Wireline Pressure Control Equipment
I. Overview

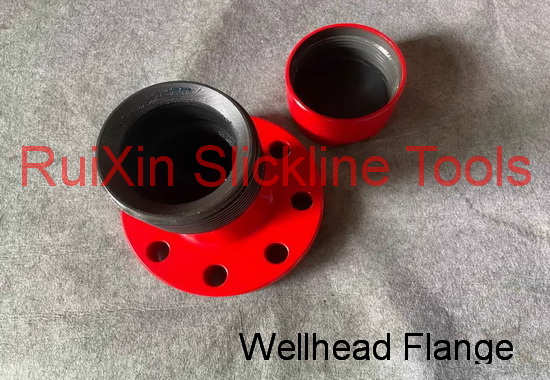

The wellhead flange is used to connect the tubing pin with the
wellhead, with the upper part connected to the tubing pin and the
lower part
connected to the wellhead. The wellhead flange is connected by
bolts and nuts. When in use, the gasket is placed between the
sealing surfaces.
After the nut is tightened, the specific pressure on the gasket
surface reaches a certain value, and then the gasket is deformed,
and the uneven
part on the sealing surface is filled, so that the connection is
tight without leakage.
II the pressure test:
The wellhead flange shall be periodically tested for compressive
strength, and the test pressure shall be 1.5 times of the working
pressure.
1. Install the pressure test joint and connect the pressure test
pipeline;
2. Start the pressure test pump for pressure test: press it to the
test pressure, hold it for 15 minutes without leakage, and fill in
the test record card.
III. Routine maintenance:
1. The pressure test shall be conducted regularly;
2. When temporarily not in use, it should be stored with silk
protector.
Welcome to contact us at any time.
